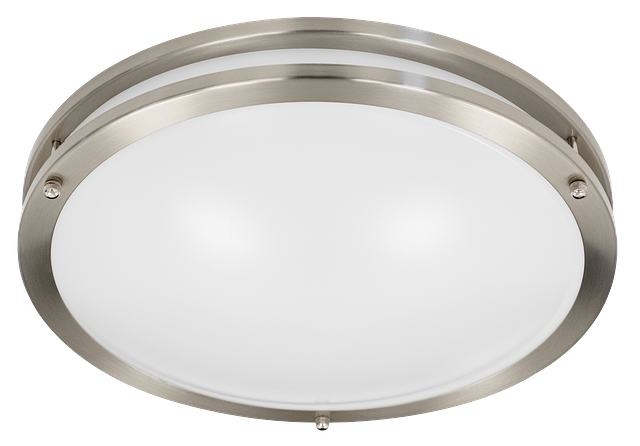

DCR Series
LED Ringed Ceiling Fixture
The LED based DCR series is a ceiling or wall mount series which can be used in a broad range of residential and commercial applications. This series provides customers with a high quality luminaire utilizing the latest LED, solid state lighting and electronic driver technology for optimal performance and maximized energy efficiency. With a traditional opal white lens, the DCR series produces even, uniform light distribution and an ideal choice for offices, corridors, stairways, bedroom, closet and foyers applications where customers are replacing incandescent, circline or compact fluorescent lamps.
Resources
Photometry
- DCR-12-17-120D-92750-BN 2700K_IESNA95.IES
- DCR-12-17-120D-92750-BN 3000K_IESNA95.IES
- DCR-12-17-120D-92750-BN 3500K_IESNA95.IES
- DCR-12-17-120D-92750-BN 4000K_IESNA95.IES
- DCR-12-17-120D-92750-BN 5000K_IESNA95.IES
- DCR-14-26-120D-927-50-XX (2700K) IES.IES
- DCR-14-26-120D-927-50-XX (3000K) IES.IES
- DCR-14-26-120D-927-50-XX (3500K) IES.IES
- DCR-14-26-120D-927-50-XX (4000K) IES.IES
- DCR-14-26-120D-927-50-XX (5000K) IES.IES
- High-transmission (White) Acrylic lens with excellent distribution and uniformity.
- Full distribution LED Luminaire.
- 10-100% triac dimming, compatible with most triac dimming switches in the market.
- Designed for a 50,000 Hour Life.
- Available in 3000K Kelvin color temperature.
- Environmentally friendly – contains no mercury or other hazardous.
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Color / Finish
- Black
- Brushed Nickel
Lamp Base
- Integrated
Lamp Life
- 72000 hrs
Lamp Source
- LED
Listings
- ETL
Ratings & Compliance
- Energy Star
- JA8
- LM80
- Title 24
Shape
- Round
Warranty
- 3 yr
