SLP Series
_0121_SLP-WH-5.pngSLP Series

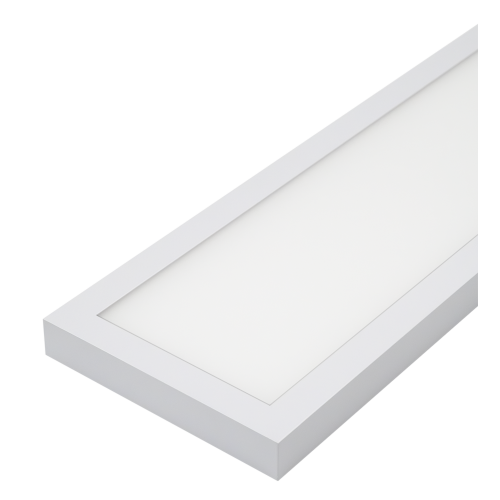

Surface Mounted Flat Panel
The SLP Series of LED surface mounted flat panel fixtures are cost effective and are an energy-saving replacement for less efficient fluorescent puff fixtures, designed to illuminate the most discriminating office or home. A shallow contemporary opal acrylic diffuser softly and evenly distributes light at comfortable levels.
Resources
- Extruded aluminum housing featuring a matte white finish with smooth opalescent acrylic lens.
- Lens design and materials provide uniform appearance without pixelation.
- All luminaires are built to UL 1598 and 2108 standards, and bear appropriate ETL labels.
- Damp location labeling is standard.
- Emergency equipped fixtures labeled UL924.
- Adheres to LM70, LM80, and TM21 industry standards.
- Equipped standard 120V triac dimming driver.
- Dims down to 10%. 5 CCT selectable switch.
Beam Angle
- 120
CCT
- 3000K
- 4000K
- 5000K
CRI
- 80 CRI
Color / Finish
- Black
- Silver
- White
Dimensions
- H: 0.75 In. L: 48 In. W: 12 In.
Dimming Protocol
- Triac
Efficacy
- 100 lm/w
Lamp Base
- Integrated
Lamp Life
- 30000 hrs
Lamp Source
- LED
Listings
- ETL
Lumens
- 4000 Lm
Materials
- Acrylic
- Aluminum
Mounting
- Ceiling
- Surface
Ratings & Compliance
- Damp
- LM80
- RoHS
- TM21
Shape
- Rectangular
Voltage
- 120 V
Warranty
- 3 yr
Watts
- 40 w
